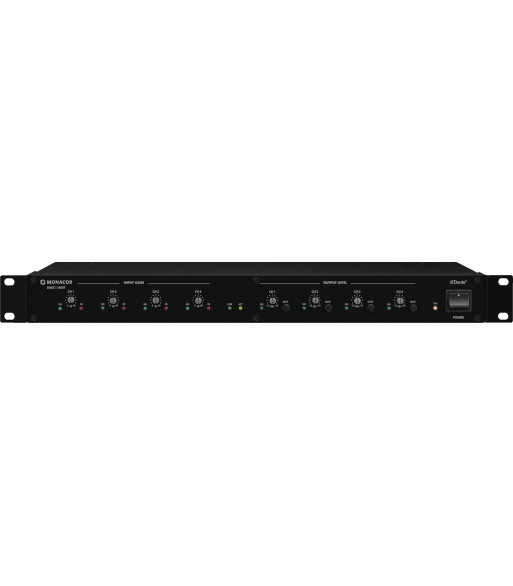

MONACOR 4-kanals Dante(R) Transceiver - DADC-144DT

5.619,00 kr.
Inkl. moms

4-channel Dante® transceiver

  • 4 analogue XLR audio inputs
  • 4 analogue XLR audio outputs
  • 4-channel Dante® input/output (EtherCon/RJ45)
  • Analogue input and output levels can be adjusted individually via recessed potentiometers
  • 48 V phantom power can be activated as required for each analogue input
  • Mute function for each analogue output
  • Dante® sources and Dante® receiver can be combined via software
  • Encoding/decoding: 16/24/32 bits
  • Sampling rates: 44.1/48/88.2/96 kHz
  • Frequency range: 20-20,000 Hz
  • LED display for indicating signal, peak, network link, network act and power
  • Metal housing
  • 482 mm (19") rack installation, 1 RS


The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd.

Antal
Klar til afsendelse fra fjernlager

Description 4-channel Dante® transceiver
Frequency range 20-20,000 Hz
Control range -
Control frequencies -
Input signal 2.3 V max.
Input sensitivity 5.7 mV-2.3 V
Input impedance -
Output signal -
Output impedance -
Gain 0.2-5.2x
Phantom power 48 V
Compression -
Gate ratio -
Crossover frequency -
High-pass filter -
Low cut -
Transmission ratio -
S/N ratio > 90 dB
Channel separation -
THD < 0.005%
Admiss. ambient temp. 0-40 °C
Power supply 230 V/50 Hz/15 VA
Dimensions 482 x 44.5 x 238 mm, 1 RS
Weight 2.9 kg
Inputs 4 x XLR, bal.
Outputs 4 x XLR, bal.
Other features 1 x EtherCon/RJ45
DADC-144DT
