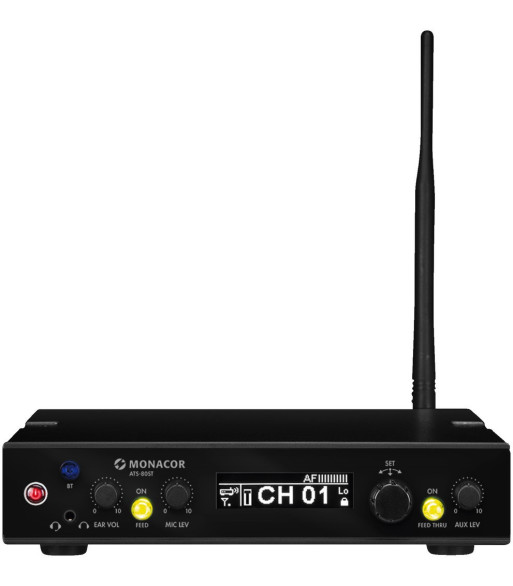

MONACOR Sender - ATS-80ST

5.529,00 kr.
Inkl. moms

42-channel digital PLL voice transmission system, 823-832 MHz and 863-865 MHz

  • As a tour guide system also suitable for any other application in which a two-way communication is required, e.g. training sessions, lectures with questions and answers and group tours or factory tours
  • High resistance to interference due to digital transmission
  • High operating range
  • Frequency range optimised for voice transmissions
  • Interference-free parallel operation of up to 42 different channels possible


42-channel stationary PLL transmitter,
for microphone operation and audio line signals. In combination with ATS-80R, also suitable for interpretation systems.

  • Stereo audio line input via RCA L/R
  • Microphone input via comb. jack (XLR/6.3 mm jack)
  • Mono audio line output via RCA
  • Loop input and loop output via 6.3 mm jack
  • Adjustable headphone output for monitoring
  • Removable antenna (TNC)
  • Supports Bluetooth
  • USB audio programming interrace
  • High-contrast OLED display
  • Channel name and ID can be edited
  • Adjustable transmitting power (high: _ 20 mW/low: _ 10 mW)
  • Operating range: approx. 100 m
  • Power is provided via encl. plug-in power supply
  • Dimensions: 215 x 51 x 210 mm
  • Weight: 1.25 kg


There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section _IMPORTANT INFORMATION_!

Antal
Klar til afsendelse fra fjernlager

General information -
Description 42-channel digital PLL transmitting unit
Carrier frequency range 823-832 MHz, 863-865 MHz
Audio frequency range -
Channels 1
THD -
Dynamic range -
RF S/N ratio -
Operating time -
Admiss. ambient temp. 0-40 °C
Power supply -
Dimensions -
Total weight -
Connections -
Specifications transmitter -
Transmitting power ? 20 mW/? 10 mW
Operating range 100 m
Power supply transmitter via encl. power supply
Width transmitter 215 mm
Height transmitter 51 mm
Depth transmitter 210 mm
Weight transmitter 1.25 kg
Connections transmitter 1 x XLR/6.3 mm jack (mic in),

1 x RCA L/R (line in),

1 x RCA L/R (line out)

1 x 6.3 mm jack (loop in),

1 x 6.3 mm jack (loop out),

3.5 mm jack (headphones)
Specifications receiver -
Audio signal receiver -
Power supply receiver -
Width receiver -
Height receiver -
Depth receiver -
Weight receiver -
Connections receiver -
ATS-80ST
