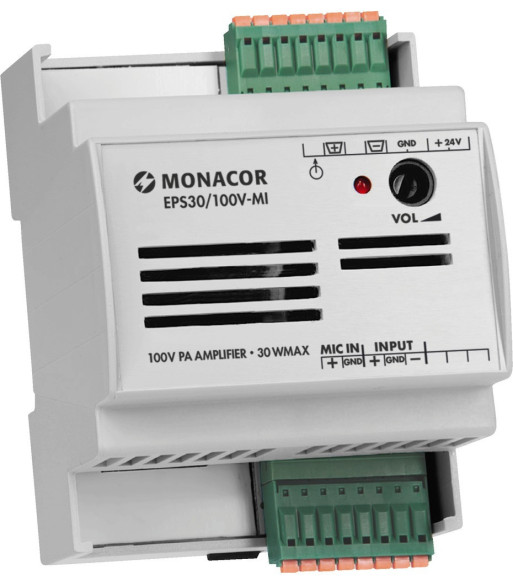

MONACOR 100V PA forstærker DIN - EPS30/100V-MI
search
  • MONACOR 100V PA forstærker DIN - EPS30/100V-MI
  • MONACOR 100V PA forstærker DIN - EPS30/100V-MI

MONACOR 100V PA forstærker DIN - EPS30/100V-MI

2.519,00 kr.
Inkl. moms
100 V PA amplifier
  • For mounting onto DIN rails according to DIN EN 60715, 4 HP
  • 1-channel class D amplifier
  • 100 V PA transformer
  • Input balanced and unbalanced
  • Microphone input
  • High-efficiency green design
  • Extra lightweight and compact version

Antal
Klar til afsendelse fra fjernlager

Peak output power25 W
Power rating-
Power rating at 2 _-
Power rating at 4 _-
Power rating at 8 _-
Power rating at 16 _-
Power rating at 100 V10 W
Power rating with 4 _ bridged operation-
Power rating with 8 _ bridged operation-
Output impedance-
Channels1
Zones-
Inputs1 V/47 k_ (bal.), 22 k_ (unbal.)
Attenuation factor-
Frequency range42-18,000 Hz
Crossover network-
Crossover frequency-
Integrated limiter-
Equalizer bass-
Equalizer midrange-
Equalizer treble-
S/N ratio97 dB
Crosstalk attenuation-
THD< 0.1%
Phantom power9-12 V
Mains voltage-
Mains frequency-
Power consumption, operation-
Power consumption, standby-
Standby current-
Operating voltage (possible alternative)12-26 V
Power supply (possible alternative)-
Admiss. ambient temp.-20 °C to +40 °C

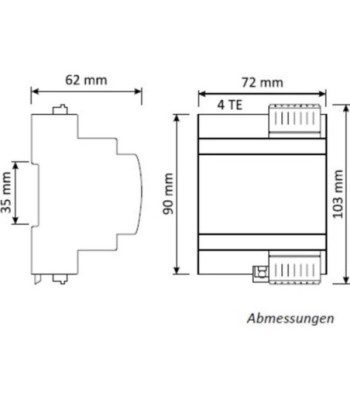

Width72 mm
Height103 mm
Depth62 mm
Rack units, RU-
Weight300 g
Connectionsspring-loaded terminals
Packing dimensions (W x H x L)0.072 x 0.095 x 0.075 m
Gross weight0.3284 kg
Net weight0.3 kg
EPS30/100V-MI
