8´´ højttaler - SP-202PA MONACOR
search
  • 8´´ højttaler - SP-202PA MONACOR
  • 8´´ højttaler - SP-202PA MONACOR

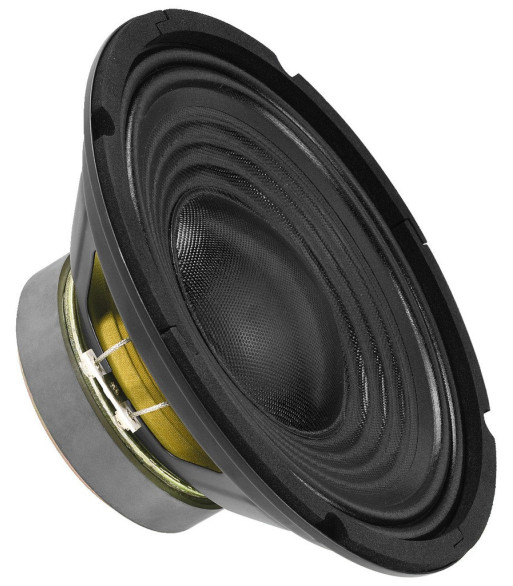

MONACOR 8´´ højttaler - SP-202PA

269,00 kr.
Inkl. moms
Universal bass-midrange speaker, 50 W, 8 _
For bass-midrange applications, also in power speaker systems.
Antal
Klar til afsendelse fra fjernlager

Impedance (Z) 8 _
Line technique -

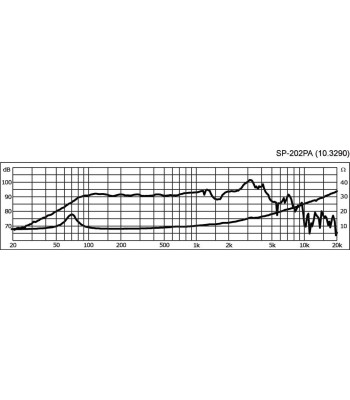

Frequency range f3-4,500 Hz
Resonant frequency (fs) 68 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 50 W
Peak music power output 100 W
Sensitivity 91 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.2 mm/N
Moving mass (Mms) 18 g
Mech. Q factor (Qms) 2.33
Electr. Q factor (Qes) 2.25
Total Q factor (Qts) 1.1
Equivalent volume (Vas) 12 l
DC resistance (Re) 7.4 _
Force factor (BxL) 5.6 Tm
Voice coil induct. (Le) 0.4 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3 mm
Eff. cone area (Sd) 216 cm2
Magnet weight 570 g
Magnet diameter Ø 100 mm
Mounting cutout Ø 185 mm
Mounting depth 82 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 200 mm x 90 mm
Outside diameter Ø 200 mm
Width Ø 200 mm
Height -
Depth 90 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 1.115 kg
Sales unit 1
Type of speaker
SP-202PA
