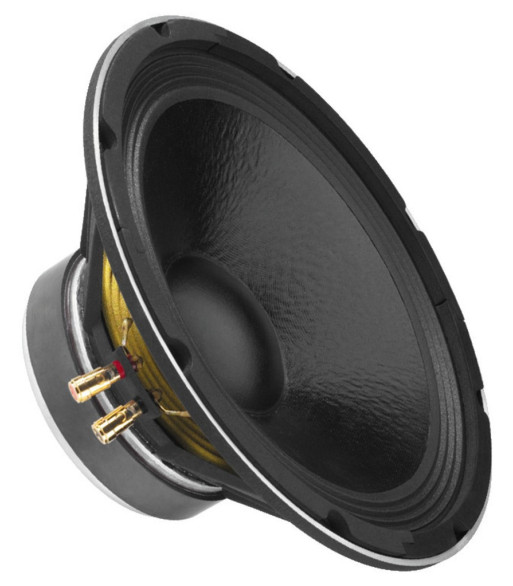

MONACOR 12´´ højttaler - SP-12A/302PA

1.169,00 kr.
Inkl. moms
Professional PA bass-midrange speaker, 300 W, 8 _
  • Of very high power capability
  • 30 cm (12") professional speaker of long excursion
  • Diecast basket
  • Cone with water-repellent coating
  • Very neat workmanship with front-facing basket
  • Wide frequency response of low distortion
  • High efficiency
  • Excellent bass reproduction
  • Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
  • For bass-reflex cabinets from 30 litres on already
  • For all kinds of professinal and semiprofessional PA applications
HOBBY HiFi 05/2013
"With the SP-12A/302PA, IMG Stage Line offers a bass speaker of high power capability for 3-way systems which features an impressively deep bass, a superior level stability and an excellent sound quality."
Antal
Klar til afsendelse fra fjernlager

Impedance (Z) 8 _
Line technique -
Frequency range f3-4,000 Hz
Resonant frequency (fs) 50 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) -
Power rating 300 W
Peak music power output 600 W
Sensitivity 99 dB/W/m
Max. rated SPL -
Max. voltage -
Radiation angle, horizontal
Radiation angle, vertical
Suspension compl. (Cms) 0.19 mm/N
Moving mass (Mms) 50 g
Mech. Q factor (Qms) 7.87
Electr. Q factor (Qes) 0.35
Total Q factor (Qts) 0.34
Equivalent volume (Vas) 77 l
DC resistance (Re) 6.4 _
Force factor (BxL) 16.98 Tm
Voice coil induct. (Le) 0.8 mH
Voice coil diameter Ø 66 mm
Voice coil former Kapton
Linear excursion (XMAX) ±5 mm
Eff. cone area (Sd) 530 cm2
Magnet weight 2 kg
Magnet diameter Ø 154 mm
Mounting cutout Ø 284 mm
Mounting depth 123 mm
Mounting hole diameter -
Hole spacing X-axis -
Hole spacing Y-axis -
Dimensions Ø 313 mm x 135 mm
Outside diameter Ø 313 mm
Width 313 mm
Height -
Depth 135 mm
Protective class
Admiss. ambient temp. 0-40 °C
Weight 5.1 kg
Sales unit 1
Type of speaker
SP-12A/302PA
