  • NAC3FCB PowerCon Plug grey

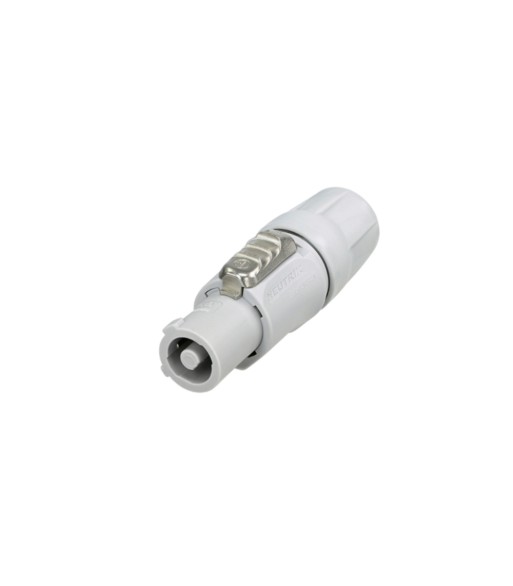

NAC3FCB PowerCon Plug grey

59,95 kr.
Inkl. moms
Antal
Klar til afhentning // afsendelse fra eget lager

Product
Title NAC3FCB
Gender female
Electrical
Contact resistance ≤ 3 mΩ
Dielectric strength 4 kVdc / 2.8 kVac
Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electrical contacts 2 + PE
Rating Europe EN 61984:20 A 250 V AC
Rating USA UL 1977:20 A 250 V AC
Mechanical
Cable O.D. 6 - 15 mm (1)
Lifetime > 1000 mating cycles
Wiresize 2,5 mm²
Wiresize 12 AWG
Locking device Quick Lock
(1) Cable O.D. range limited to 6 mm - 14 mm acc. VDE
Material
Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Insert Polyamide (PA 6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Polyamide (PA 6 30 % GR)
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C
Protection class IP20
Flammability Rating UL 94 HB
NEUTRIK
NAC3FCB
