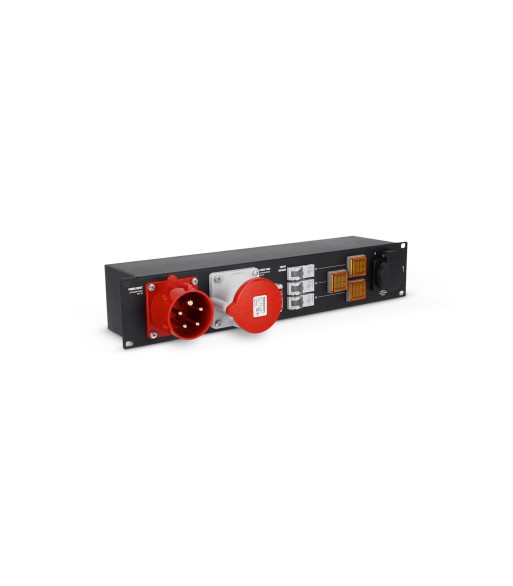

LD Systems 2U, 19" Three-Phase Rack PDU (32A)

4.699,00 kr.
Inkl. moms

The ADA PDU is a 2U, 19" three-phase rack power distribution unit with 32A capacity, designed for clean and reliable power distribution in touring and installation systems. It features a 32A three-phase CEE input with a 32A CEE link output for daisy-chaining, plus 6 × Schuko outputs (IP54). Power is safely segmented via three independent circuit breakers, while per-phase voltage and current are monitored on LED segment displays for quick on-site checks. Built in a rugged, black powder-coated steel enclosure and fitted with MENNEKES® connectors throughout.

Antal
Klar til afsendelse fra fjernlager

  • Rack power distribution unit for 3 × ADA 12K4 / ADA 8K4
  • 32A three-phase CEE input with 32A CEE link output (daisy-chain)
  • 6 × Schuko outputs (IP54)
  • 3 independent circuit breakers
  • LED segment displays for voltage and current monitoring Per-phase
  • MENNEKES® connectors for input and outputs

General

Input connector typeCEE plug 32A male
Output connector typeSchuko socket female
Output protection classIP54
Output 2nd connector typeCEE plug 32A female
MaterialSteel
Number of outputs7
ColourBlack

Dimensions & weight

Width483 mm
Height88 mm
Depth191.1 mm
Rack width19"
Rack height2 U
Installation depth124.1 mm
Weight3.75 kg
LD Systems
LDADAPDU
