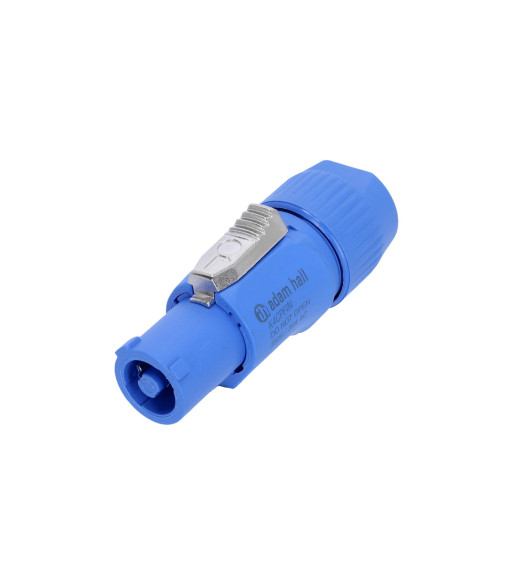

Mains connector PowerIn blue

28,00 kr.
Inkl. moms
4 STAR C PF IN

The 3-pole lockable power connector replaces appliance couplers, wherever a very rugged solution in combination with a locking device is needed. Compatible with all common powerCON sockets our 4 STAR C PF IN is a robust and good solution for power supply of devices with lockable power connection. To avoid the possibility of intermating the power in and the power out connectors have a different keying. Attention!: The 4 STAR C PF IN is a connector without breaking capacity i.e. should not be connected or disconnected under load or live!

Antal
Klar til afsendelse fra fjernlager

  • High-quality mains connector from our 4 Star Series
  • Current carrying capacity up to 20 A / 250 V ac
  • Quick and easy locking
  • Compatible with all common powerCON sockets
  • Ergonomic design
  • Extremely robust due to polyamide housing
  • Also available as power out version (K4CPFOUT)

Product typePlugs and Connectors
TypePower Connectors
Poles3
Genderfemale
Cable diameter6 - 15 mm
Contactsnickel plated
Connection typeScrew terminals
Colorblue
Weight0,032 kg
Adam Hall Connectors
K4CPFIN
