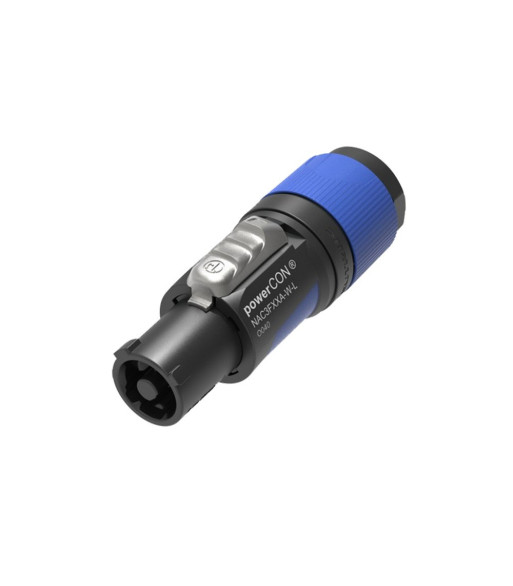

Neutrik PowerCON blue PowerIn
search
  • Neutrik PowerCON blue PowerIn
  • Large
  • Neutrik PowerCON blue PowerIn

Neutrik PowerCON blue PowerIn, Large

96,00 kr.
Inkl. moms
NAC3FXXA-W-L
  • Locking AC mains cable connector, keyed and color coded (blue) for power-in, screw terminal assembly, for cable diameters 10 - 16 mm.
  • The powerCON FXXA/FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles.
  • It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.
Antal
Klar til afsendelse fra fjernlager

  • IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1
  • Power-in (blue) and power-out (grey) versions with di?erent keying to avoid the possibility of intermating
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Improved kink protection by two-component bushing

Product typePlugs and Connectors
TypePower Connectors
Poles3
Genderfemale
Cable diameter10 - 16 mm
Contactscopper
Connection typePowerCon
Housingpolyamide
Weight0,044 kg
NEUTRIK
NAC3FXXAWL

Produktinformation

Farve
Sort
Kabel: Stik - start
Strøm: PowerCon 230V - Hun
Kabel: Stik - slut
Løse ender
Kabel: Stik - Adapter
Plastik adaptor
