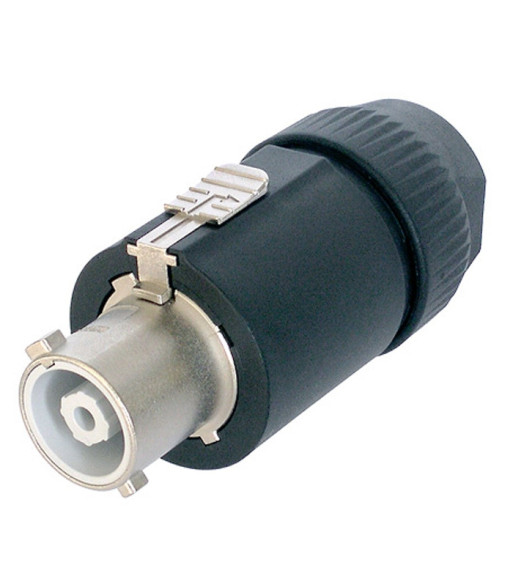

Neutrik Neutrik powerCON® female - 32A

239,00 kr.
Inkl. moms

The 32 A powerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3 pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V.

Features & Benefits
  • 250 V ac, 32 A single-phase (for ambient temperatures up to 35°C)
  • Premating contact for protective earth
  • Fast and easy locking system to prevent unintentional disengagement
  • Cable O.D. Range: 8 - 20 mm
  • Wiring with screw-type terminals for wires 2.5 to 6.0 mm² (AWG 14 - 10)
  • Excellent cable handling and protection
  • Extremely robust and reliable
  • VDE, UL, cUL and JET approved
Antal
Klar til afsendelse fra fjernlager

Product typePlugs and Connectors
TypePower Connectors
Poles3
Genderfemale
Contactsnickel plated
Connection typeScrew terminals
Housingpolyamide
Width36.2 mm
Height36.2 mm
Depth82.5 mm
Weight0,074 kg
NEUTRIK
NAC3FCHC

Produktinformation

Farve
Sort
Kabel: Stik - start
Strøm: PowerCon 230V - Hun
Kabel: Stik - slut
Løse ender
Kabel: Stik - Adapter
Plastik adaptor
