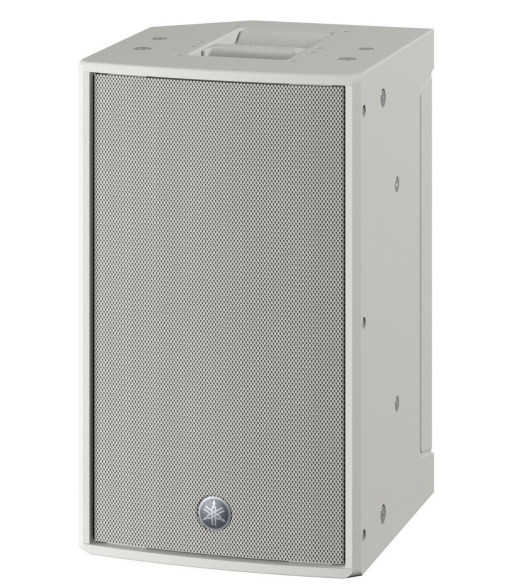

Yamaha DZR10 Aktiv PA Højttaler
search
  • Yamaha DZR10 Aktiv PA Højttaler
  • Yamaha DZR10 Aktiv PA Højttaler
  • Yamaha DZR10 Aktiv PA Højttaler

YAMAHA 2-way powered loudspeaker with a 2_ HF and a 10" LF, White version. - DZR10W

16.099,00 kr.
13.040,19 kr. Spar 19%
Inkl. moms
  • Kraftfuld højttaler til scene, teater og scene
  • Designet som fronthøjttaler og gulvmonitor
  • 10_ woofer med 2_ diskant
  • Maks lydtryk på 137 dB
Antal
Klar til afsendelse fra fjernlager

Speaker type

2-way, Bi-amped Powered Speaker, Bass-reflex

Frequency range (-10dB)

44Hz - 20kHz

Coverage area

H90_ x V60_(Rotatable)

Components

LF

10" Cone, 3" Voice Coil, Neodymium magnet

MF

-

HF

2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet

Crossover

1.8kHz (FIR-X)

Sampling frequency rate

Internal

96kHz and FIR Filter

A/D D/A Converters

96kHz AD/DA

Maximum output level (1m; on axis)

137dB SPL *1

Power rating

Dynamic

2000W (LF:1000W, MF/HF: 1000W) *2

Continuous

1300W (LF: 920W, MF/HF: 380W)

I/O Connectors

Analog I/O

Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20k_, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT

Others

USB2.0 Host 5V 500mA for USB memory DATA storage/load

AC

IEC AC inlet x1 (V-Lock)

Amplifier class

Class-D

Cooling

Fan cooling, Variable speeds

Power consumption

45W (Idle), 150W (1/8)

Handle

Aluminium die-cast, Top x1, Side x1

Rigging

M10 x8, M8 x2

Dimensions

W

315 mm (12.4")

H

537 mm (21.1") (with rubber feet)

D

345 mm (13.6")

Net weight

17.9kg (39.5lbs)

Options

U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10

Others

Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black

Floor Monitor Angle

50°

Pole socket

_35 mm x2 (0° or -7°)
Yamaha
CDZR10W
