Bralo Grooved blind rivet made of aluminium / steel 4.8 x18 mm - 250 stk.

219,00 kr.
Inkl. moms

55964818

Durable and secure fixing element made of aluminium alloy, particularly suitable for blind holes.

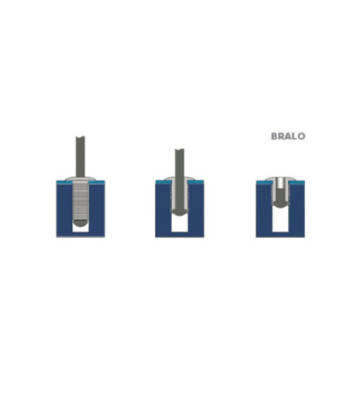

The grooved rivet from Bralo provides a secure and effective method for fixing metal to soft and fibrous surfaces. This rivet connection does not require a through-drill hole. The expansion of the rivet within the material forms a kind of"clamp", which creates a robust connection with the drill hole. It is a break mandrel blind rivet, which is also often used in furniture manufacturing and the construction industry to securely attach metal fittings to the carcass. The grooved rivet from Bralo provides a consistent, high quality and long-lasting fixing which is extremely resistant to corrosion, vibration and expansion.

The blind rivet is a fixing system for connecting two parts of the same or different materials, of which only one needs to be accessible. BRALO blind rivets provide a robust and secure solution for many requirements. They have been developed to fulfil the highest quality standards and also to withstand demanding ambient conditions.

Other rivet versions for special applications and requirements are available in the shop.

Antal
Klar til afsendelse fra fjernlager

  • Single-sided application (blind rivet principle)
  • Secure connection in blind holes
  • Numerous grooves provide the right grip
  • Suitable for connection of different materials (including compressed materials, wood, concrete)
  • No damage to the surface after riveting
  • Excellent resistance to temperature changes
  • No loosening due to dynamic influences (vibration-resistant) and [---] very high tensile strength
  • High quality, simple and quick installation
  • Ecological riveting process: no smoke, sparks or steam
  • Simple and quick handling

Product type Fittings
Type Rivets
Rivet diameter 4.8 mm
Rivet length 18 mm
Head diameter 9.5 mm
Head height 1.4 mm
Mandrel diameter 2.65 mm
Clamping width 13 mm
Load capacity (sheering strain) 1600 N
Tensile load 2600 N
Rivet material Aluminium
Rivet alloy AIMg 3.5
Mandrel material Steel
Mandrel surface galvanized
Weight 0,002 kg
