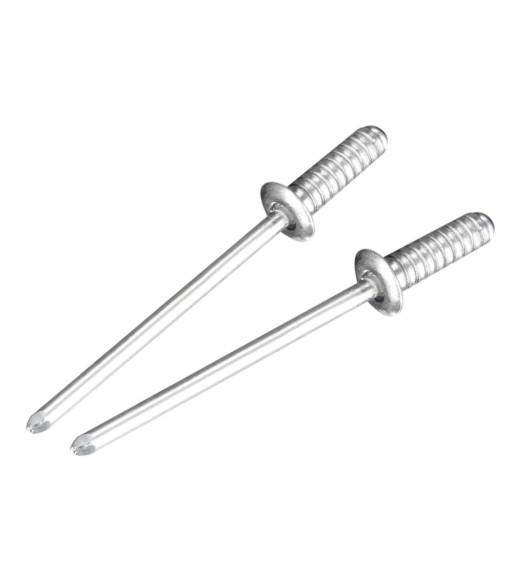

Bralo AS Grooved blind rivet 3.2 mm x 10 mm - 500 Stk.
search
  • Bralo AS Grooved blind rivet 3.2 mm x 10 mm - 500 Stk.
  • Bralo AS Grooved blind rivet 3.2 mm x 10 mm - 500 Stk.

Bralo AS Grooved blind rivet 3.2 mm x 10 mm - 500 Stk.

239,00 kr.
Inkl. moms

Durable and secure fixing element made of aluminium alloy, particularly suitable for blind holes.

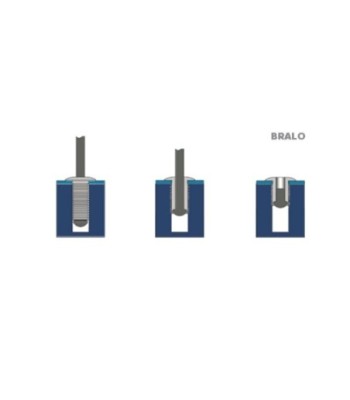

The grooved rivet from Bralo provides a secure and effective method for fixing metal to soft and fibrous surfaces. This rivet connection does not require a through-drill hole. The expansion of the rivet within the material forms a kind of "clamp", which creates a robust connection with the drill hole. A break mandrel blind rivet is also often used in furniture manufacturing and the construction industry to securely attach metal fittings to the carcass.

The grooved rivet from Bralo provides a consistent, high quality and long-lasting fixing that is extremely resistant to corrosion, vibration and expansion. The blind rivet is a fixing system used to connect two parts of the same or different materials, of which, however, only one side needs to be accessible. BRALO blind rivets provide a robust and secure solution for numerous requirements. They have been designed to fulfil the highest quality standards and to be resistant to demanding ambient conditions. Other rivet versions for individual applications and requirements are available in the shop.

Antal
Klar til afsendelse fra fjernlager

  • Can only be processed from one side (blind rivet principle)
  • Secure connection in blind holes
  • Numerous grooves provide the right grip
  • Different materials can be joined together (e.g. pressed material, wood, concrete)
  • No damage to the surface after riveting
  • Good behaviour with temperature fluctuations
  • No loosening due to dynamic influences (vibration-resistant)
  • Very high tensile strength
  • High-quality, simple and quick installation
  • Quick and easy handling

General

Rivet typeGrooved rivet
Rivet materialAluminium
Rivet coatingAluminium-magnesium alloy (AlMg 3.5)
Head profileLarge head
Mandrel materialSteel
Mandrel coatingGalvanised
ColourSilver

Load capacity

Shear600 N
Tension800 N

Dimensions & weight

Rivet length10 mm
Clamping range6 mm
Rivet diameter3.2 mm
Head diameter6.5 mm
Head height0.8 mm
Mandrel diameter1.8 mm
Weight1.15 g
Bralo
55963210
