Defender Cable Protector 5-channel LUX

2.219,00 kr.
Inkl. moms
MIDI 5 LUX

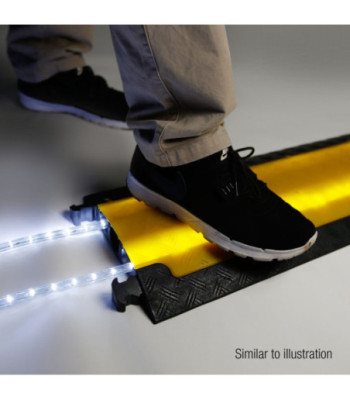

The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable crossovers in the DEFENDER® LUX Series have highly transparent, yellow-tinted lids in which LED light tubes can be inserted parallel to cables and other pipes. Based on state-of-the-art technology, DEFENDER® LUX cable protectors have been developed in collaboration with event organisers and operators of large halls and festival venues and ensure the highest possible level of safety and visibility in the dark, both indoors and outdoors. For more information, please refer to our price list for DEFENDER® LUX cable crossovers, or contact your DEFENDER® representative directly.

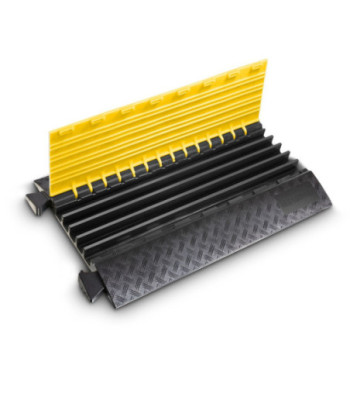

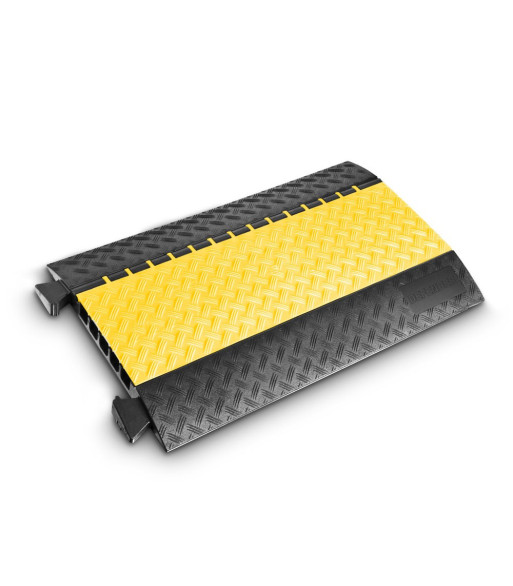

Cable protector, 5-channel

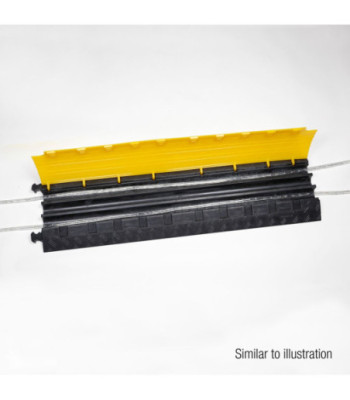

The highly versatile and safe DEFENDER® MIDI cable protector boasts a flat profile, a load capacity of 5 tons over a surface area of 25 x 30 cm, integrated connectors and handles as well as the possibility of combining straight sections, 45° bends and end ramps to accommodate diverse, continuous cable routes. Five 34 x 36 mm cable channels allow safe routing for single sound, light and power cables. DEFENDER® MIDI cable protectors are suitable for a wide range of applications, for example, heavy traffic, construction sites, warehouses, shopping centres, trade shows, exhibitions, carnival and music events as well as broadcasting studios.

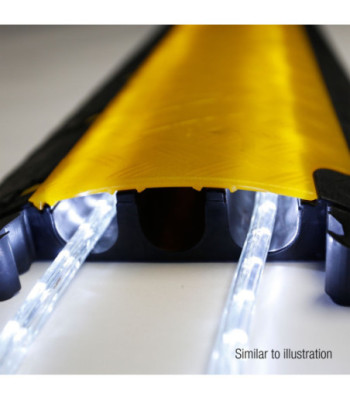

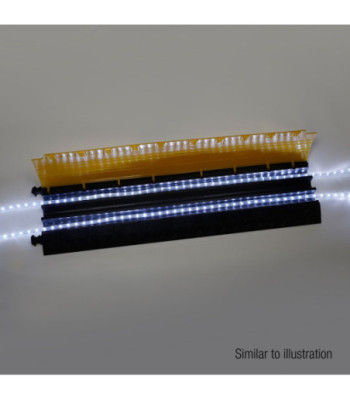

DEFENDER® LUX cable protectors can be used with commercially available light tubes. Light tubes with a so-called neon effect are particularly recommended since the individual LEDs are less visible and this provides particularly homogeneous lighting. For outdoor use, please take care to ensure the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.

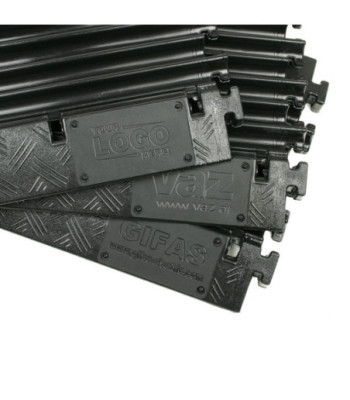

Label your cable crossovers! All DEFENDER® cable protectors can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don_t hesitate to contact us.

Antal
Klar til afsendelse fra fjernlager

  • Heavy-duty, non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
  • Highly transparent yellow-tinted lid for use in the dark with light tubes
  • Yellow polyurethane lid with high warning effect and secure closure
  • Patented, self-cleaning lid hinge
  • 5 channels 34 x 36 mm
  • Load capacity approx. 5 t/ 25 x 30 cm
  • Fire resistance class B2 (DIN 4102)
  • Resistant to oil, acid, petrol and short-term contact with solvents
  • Dimensions 87 x 53.8 x 5.5 cm; Weight 13.5 kg
  • Reliable protection for cables and personnel for indoor and outdoor use
  • Also available with pre-drilled mounting holes with a blue lid (Item N° 85300BLUE)
  • Curves and end ramps for flexible cable protection are available as accessories
  • TÜV SÜD certified

Please observe your national road traffic regulations for use on public roads.


Product typeCable Protectors
Type5 Channels
Length870 mm
Height55 mm
Width538 mm
Channels5
Width channel 134 mm
Height channel 136 mm
Width channel 234 mm
Height channel 236 mm
Width channel 334 mm
Height channel 336 mm
Width channel 434 mm
Height channel 436 mm
Width channel 534 mm
Height channel 536 mm
MaterialPolyurethane
Max loadApprox. 5 t on a surface area of 25 x 30 cm
Chemical resistanceOil-resistant
Chemical resistancePetrol-resistant
Chemical resistanceShort-term contact with solvents
Hardness range88 Shore
Fire protection classB2
Temperature range-30°C to 60°C °C
Weight13,4 kg
Defender
85300LUX
