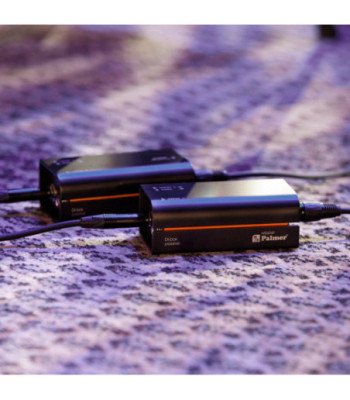

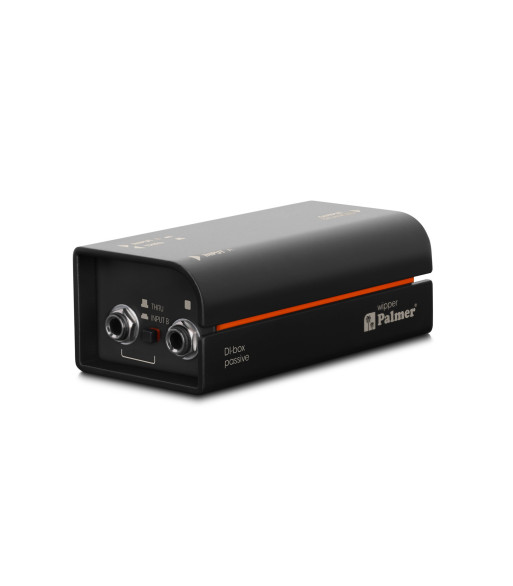

Palmer Passive DI box

979,00 kr.
Inkl. moms
RIVER wipper

If you need to pick up the pure sound of your guitar, bass or keyboard, you need a high-quality DI box which does not alter the natural sound or add any noise.

The Palmer wipper is a single channel passive DI box with a high-quality transformer, which also handles high levels without distorting or losing the pure sound of your instrument. With a ratio of 10:1, it can be used for optimal impedance and level adjustment to connect instrument signals from guitars, bass, keyboards or synthesisers to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference. Thanks to a switchable 30 dB pre-attenuation, the wipper can also be looped in between amplifier output and the loudspeaker.

The Palmer wipper is an easy-to-use problem solver. Its passive construction means it does not need any batteries or a phantom power. This makes it extremely fail-safe and also virtually indestructible thanks to its aluminum and steel casing. With its ability to retain the natural sound of your instrument, it also cuts a fine figure studio and live environments. This way you can simply be true to your sound.

Antal
Klar til afsendelse fra fjernlager

  • Balancing and impedance matching for guitar, bass, keyboards & synthesizers
  • Eliminates ground loop hum thanks to galvanic transformer isolation
  • Extremely fail-safe, no power supply required
  • THRU-output for passing the input signal to the amplifier
  • THRU-output jack can also be used as second input to sum two input signals
  • Pure and unaltered low-noise audio
  • Handles even high-level inputs without distortion
  • Switchable 30 dB pad for extremely high input levels (e.g. amplifier output)
  • Solid casing made of aluminium and steel
  • Incl. rewritable tour label for attachment onto the back of the wipper
  • Engineered in Germany

Product typeDI box
Typepassive
Channels1
Transformer isolatedyes
Number of inputs2
Input typeunbalanced
Input connectors6.3 mm jack
Number of outputs1
Output typebalanced
Output connectorsXLR
THRU outputs per channel1
Input attenuation (Pad)0 / 30 dB
Ground lift switchYes
Additional Featuresmono merge
HousingAluminium continuous casting
Dimensions (W x H x D)50 x 140 x 68 mm
Weight0,43 kg
Ambient temperature (in operation)- 20 - 70 °C
Relative Humidity< 80% (non-condensing)
Accessories (included)Inscription label (tour label)
Accessories (included)rubber feet

Audio

Max. input level (< 1% THD, 20 Hz)+24 dBu
Max. input level (< 1% THD, 1 kHz)+32 dBu
Frequency response (±0,2dB, relative 1kHz)10 Hz - 60 kHz
Input impedance (1 kHz, Setting: 0 dB Pad, THRU)47 kOhm
Output impedance (1 kHz, Setting : 0 dB Pad, THRU)33 Ohm
THD (30 Hz, +4 dBu, unity, unweighted)< 0,02 %
THD (1 kHz, +4 dBu, unity, unweighted)< 0,0007 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)< 0,002 %
Transformer ratio10 : 1
Palmer
PWIPPER
