Palmer Passive re-amplification box

969,00 kr.
Inkl. moms
RIVER trave

Reamping is a valuable recording technique used by many sound engineers.

It lets you experiment at leisure by running guitar, bass, keyboard, drum and even vocal tracks through amplifiers and effects pedals. As with many other techniques, you need the right tools.

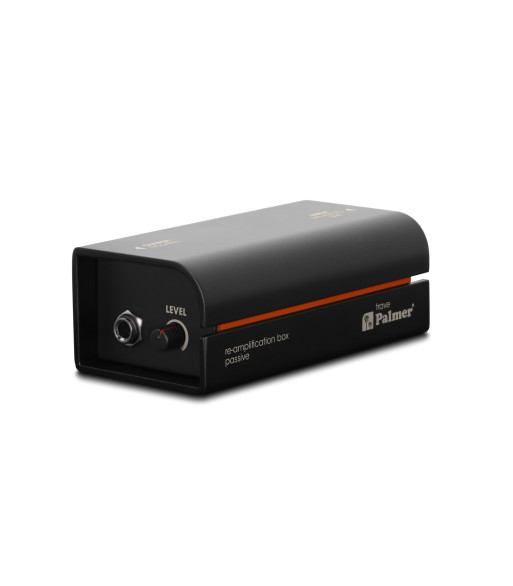

The Palmer trave is a passive reamping box that requires no external power supply. Inside is a specially developed transformer that converts the balanced line signal into an unbalanced Hi-Z signal with perfectly matched impedance for your guitar amplifier or effect pedal. At the same time, the trave prevents ground loops, which are otherwise almost unavoidable when you combine an audio interface or mixer output with a guitar amp or effects pedal. The input of this reamping box allows you to switch between consumer (-10 dBV) and professional (+4 dBu) levels, and the output level is continuously adjustable, so you can drive your amp or pedals just the way you like it.

With the Palmer trave passive re-amplification box, you can add new creative sounds and timbres to your music and ultimately be true to your sound.

Antal
Klar til afsendelse fra fjernlager

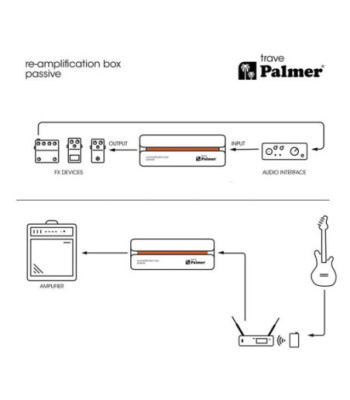

  • For routing your signal from the DAW or mixer to your guitar or bass amplifier
  • Prevents ground loop hum, ground lift switch
  • Converts balanced line signal to unbalanced instrument signal
  • Optimal impedance matching
  • Retains your sound clean and pure
  • Switchable input level - 10dBV/+4 dBu
  • Output level continuously adjustable
  • Passive operation, no power supply required
  • Solid casing made of aluminium and steel
  • Incl. rewritable tour label for attachment onto the back of the trave
  • Engineered in Germany

Product typeDI box
Typepassive
Channels1
Transformer isolatedYes
Number of inputs1
Input typebalanced
Input connectorsXLR
Outputs1
Output typeunbalanced
Output connectors6.3 mm jack
Ground lift switchyes
More featuresInput Level Switch
More featuresOutput Level Potentiometer
Housing materialAluminium continuous casting
Height140 mm
Width50 mm
Depth68 mm
Ambient temperature (in operation)-20 - 70 °C
Relative Humidity< 80% (non-condensing)
Accessories (included)Inscription label (tour label)
Accessories (included)rubber feet
Weight0,395 kg

Audio

Max. input level (< 1% THD, 20 Hz)+19 dBu
Max. input level (< 1% THD, 1 kHz)+32 dBu
Frequency response (±1 dB, relative 1 kHz)10 Hz - 20 kHz
Input impedance (1 kHz, max. Level, -10dBV)5 Ohm
Output impedance (1 kHz, max. Level, -10dBV)4.2
THD (30 Hz, +4 dBu, unity, unweighted)<0,08%
THD (1 kHz, +4 dBu, unity, unweighted)<0,003%
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu)<0,004%
Transformer ratio1:3
