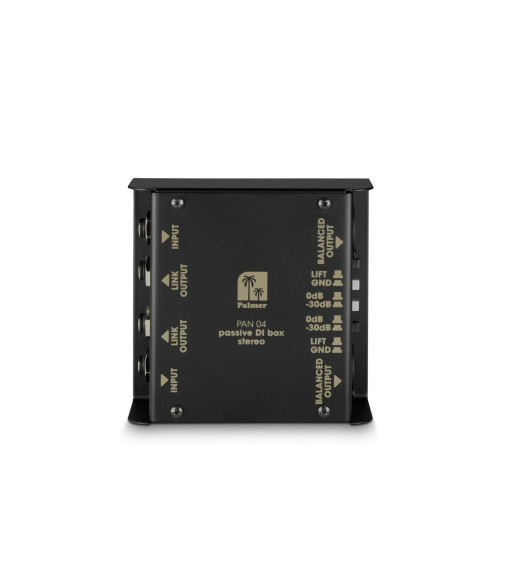

Palmer DI box 2-channel passive

989,00 kr.
Inkl. moms
PAN 04

The PAN-04 consists of a housing containing the equivalent of two PAN-01s, making it a dual channel passive DI box. This _stereo" configuration makes it ideally suited for use with certain keyboards and devices which have several outputs.ive DI box. Jack input with paralell _THRU" output, transformer balanced XLR output. Attenuable input sensitivity, can handle both line level and speaker level signals.

Antal
Klar til afsendelse fra fjernlager

Product typeDI boxes
Typepassive
Channels2
Inputs2
Input connectors6.3 mm jack
Max. input level+ 54 dBu
Input impedance60 k Ohm(s)
Input pad0 / -30 dB
Number of outputs2
THRU outputs/channel1
Output connectors6.3 mm jack
Output connectorsXLR
Max. output level+ 4 dBu
Output impedance600 Ohm(s)
Frequency response10 - 40.000
Transformer balancedYes
Ratio10 : 1
Controlsattenuation
Controlsground lift
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width110 mm
Depth110 mm
Height45 mm
Weight0,419 kg
Palmer
PAN04
