Palmer Professional DI box active

2.359,00 kr.
Inkl. moms
PAN 02 PRO

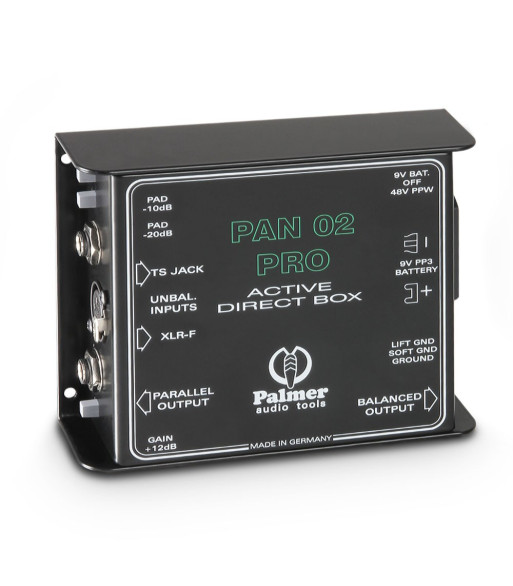

The Palmer PAN02 PRO is an active DI box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The ground lift switch has a "lift" position allowing adjustments between a "soft and hard grounding" . The balanced output is achieved with a high quality transformer in the Mumetall housingthat was specially developed for this purpose. The PAN02 PRO can be powered either with a 9 V battery or 48 V phantom power. A two-colour LED indicates which source supplies the power.

Antal
Klar til afsendelse fra fjernlager

  • First-class active DI box
  • Unbalanced XLR input
  • 3-way attenuator (-10, -20, -30dB)
  • Switchable gain (12dB)
  • Max. output voltage +20 dB
  • Soft ground lift

Product typeDI boxes
Typeactive
Channels1
Inputs2
Input connectors6.3 mm jack
Input connectorsXLR
Max. input level+ 45 dBu
Input impedance0dB & 12 dB: 1 M Ohm(s)
Input impedance-10 & -20 dB: 70 k Ohm(s)
Input impedance-30 dB: 40 k Ohm(s)
Input pad0 dB, -10 dB, -20 dB, -30 dB
Number of outputs1
THRU outputs/channel1
Output connectors6.3 mm jack
Output connectorsXLR
Max. output level+ 20 dBu
Output impedance600 Ohm(s)
Frequency response20 - 20000
Transformer balancedYes
Ratio3.16:1, 10:1, 31.6:1, 1:4
Controlsattenuator
Controlsbattery/+ 48 V Power
ControlsBoost
Controlsground lift
Power supply+48 V phantom power
Power supply9 V block
Cabinet materialsheet steel
Cabinet surfacePowder coated
Width116 mm
Depth140 mm
Height43.5 mm
Weight0,85 kg
Palmer
PAN02PRO
