Forforstærker t/indb. - PREAMP-1UP MONACOR
search
  • Forforstærker t/indb. - PREAMP-1UP MONACOR

MONACOR Forforstærker t/indb. - PREAMP-1UP

2.479,00 kr.
Inkl. moms

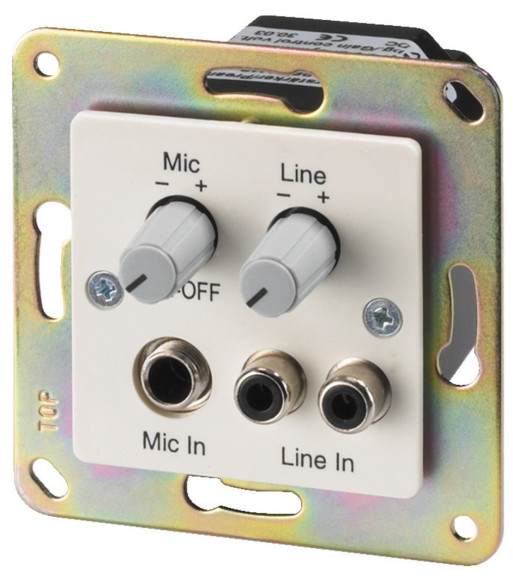

Flush-mounted preamplifier
  • For connection of power amplifiers
  • Fitted metal base plate
  • Connections and level controls for line input and microphone input
Description of features:
Preamplifier for connecting a dynamic microphone with 6.3 mm plug and a line source (e.g. tuner, CD player or MP3 player) via RCA jacks. Suitable for residential premises, small training rooms, practices, etc. ...The volume of the sound sources can be adjusted separately. The PREAMP-1UP features an on/off switch. The preamplified signal can then be transmitted to several power amplifiers (low-voltage and/or 100 V amplifier). Installation is done in a standard flush-mounted socket with a depth of 63 mm. The scope of delivery includes an imprinted cover (50 x 50 mm). A respective adapter frame for the corresponding range of switches is available from electrical wholesalers.
Antal
Klar til afsendelse fra fjernlager

Impedance
Line input 400 mV (line)
4 mV (mic)
Input control voltage DC current  0-10 V
Line output 5 V max./50 _
Output control voltage -
Channels -
Attenuation -
Attenuation direction -
Turning angle -
Frequency range 20-20,000 Hz (line)
40-15,000 Hz (mic)
THD -
S/N ratio -
Power rating -
Power supply DC current  22-26 V/0.025 A
Admiss. ambient temp. 0-40 °C
Dimensions -
Weight -
Connections 7-pole terminal strip,
removable
1 x RCA L/R (line)
1 x 6.3 mm jack (mic)
PREAMP-1UP
