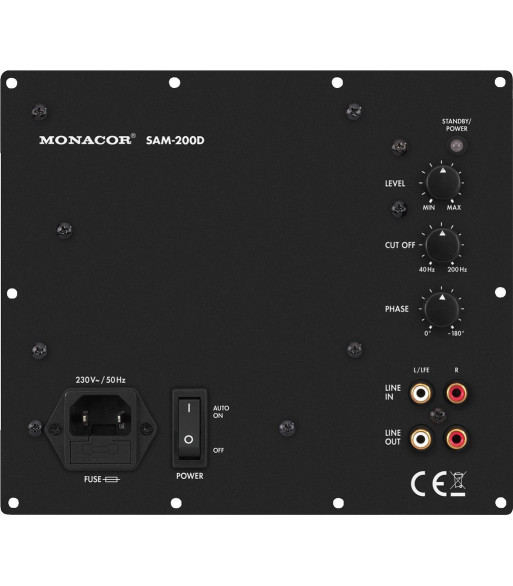

MONACOR Digitalt forstærkermodul 280Wmax - SAM-200D

1.769,00 kr.
Inkl. moms
Active Subwoofer Modules for the Digital Age
Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from MONACOR provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.
Class D active subwoofer module, 200 W at 4 _

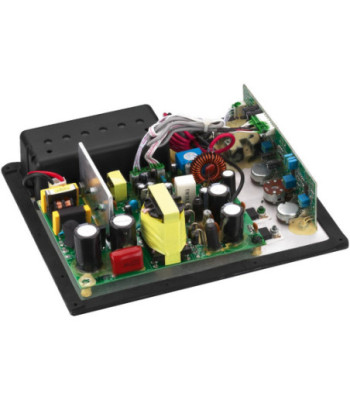

  • High-performance active module in class D technology
  • Variable low-pass filter: 40-200 Hz (18 dB)
  • Continuously adjustable phase control 0-180° for perfectly matching it to the main speakers
  • Line input, par. line output
  • Integrated bass boost of approx. 3 dB at 40 Hz
  • High power reserves
Antal
Klar til afsendelse fra fjernlager

Channels 1
Zones -
Power rating 200 W
Power rating at 2 _ -
Power rating at 4 _ 200 W
Power rating at 8 _ 100 W
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Peak music power output (PMAX) 280 W
Output impedance
Inputs max. 7 V/20 k_
Attenuation factor 26.6
Frequency range 20 Hz - (var. 40-200 Hz)
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass -
Equalizer midrange -
Equalizer treble -
S/N ratio > 70 dB
Crosstalk attenuation -
THD < 0.1%
Power supply _ 230 V/50 Hz/330 VA
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 330 VA
Power consumption, standby > 0.5 W
Standby current -
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. 0-40 °C
Dimensions 178 x 204 x 80 mm
Width 178 mm
Height 204 mm
Depth 80 mm
Rack spaces, RS -
Weight 1.4 kg
Connections 1 x RCA (line in),
1 x RCA (line out)
SAM-200D
