MONACOR Digitalt forstærkermodul 420Wmax - SAM-300D

2.049,00 kr.
Inkl. moms
Active Subwoofer Modules for the Digital Age
Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from MONACOR provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.

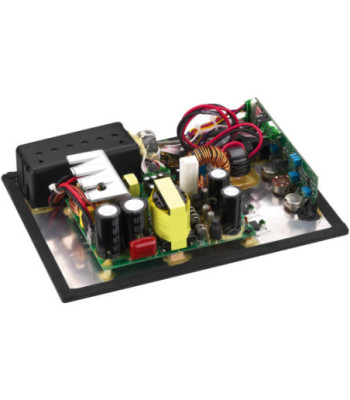

Class D active subwoofer module, 300 W at 4 _
  • High-performance active module in class D technology
  • Variable low-pass filter: 40-200 Hz (18 dB)
  • Continuously adjustable phase control 0-180° for perfectly matching it to the main speakers
  • Line input, par. line output
  • Integrated bass boost of approx. 3 dB at 40 Hz
  • High-level inputs for parallel connection to the speaker cables
  • High power reserves
Antal
Klar til afsendelse fra fjernlager

Channels 1
Zones -
Power rating 300 W
Power rating at 2 _ -
Power rating at 4 _ 300 W
Power rating at 8 _ 150 W
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Peak music power output (PMAX) 420 W
Output impedance
Inputs max. 7 V/22 k_
Attenuation factor 24.4
Frequency range 20 Hz - (var. 40-200 Hz)
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass -
Equalizer midrange -
Equalizer treble -
S/N ratio > 70 dB
Crosstalk attenuation -
THD < 0.1%
Power supply _ 230 V/50 Hz/440 VA
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 440 VA
Power consumption, standby < 0.5 W
Standby current -
Operating voltage (possible alternative) -
Power supply (possible alternative) -
Admiss. ambient temp. -
Dimensions 188 x 255 x 90 mm
Width 188 mm
Height 255 mm
Depth 90 mm
Rack spaces, RS -
Weight 1.6 kg

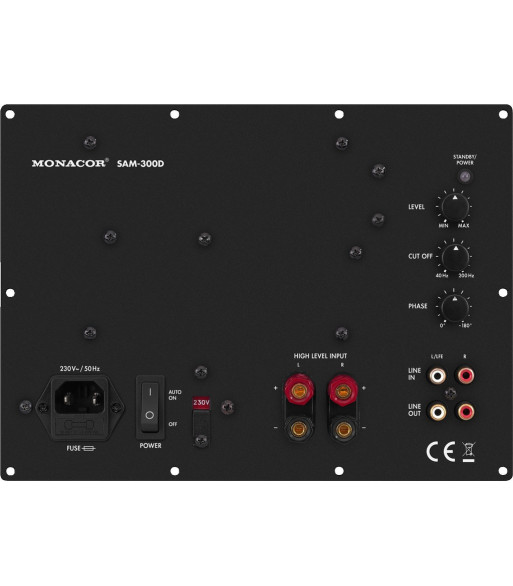

Connections 1 x RCA (line in),
1 x speaker terminal (high power in),
1 x RCA (line out)
SAM-300D
