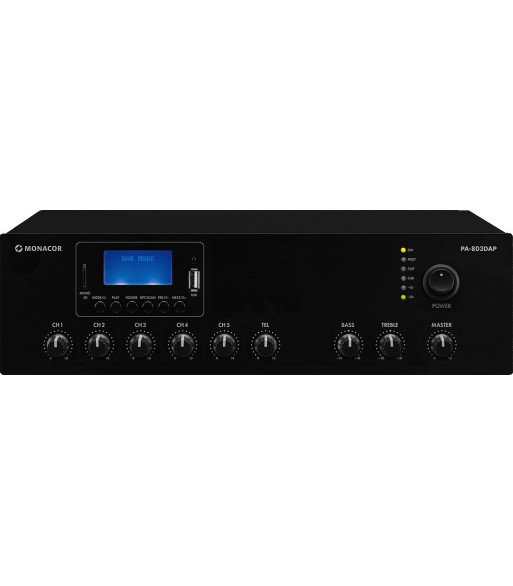

MONACOR 100V forstærker 1x30W - PA-803DAP

2.339,00 kr.
Inkl. moms

Mono class D PA mixing amplifier,
with integrated MP3 player, FM/DAB+ tuner and Bluetooth.

  • 1 x 30 W
  • Class D concept with high efficiency to cut energy costs
  • Silent operation due to fanless cooling concept
  • Bluetooth version 4.2
  • MP3 player with USB/SD interface, FM/DAB+ radio, LED display, infrared remote control
  • Reception of interference-free digital radio (DAB+)
  • 1 balanced XLR microphone input with 48 V phantom power and priority selection for announcements
  • 2 unbalanced inputs, switchable mic/line
  • 2 unbalanced line inputs
  • 1 emergency input
  • 1 Music-On-Hold output (MOH)
  • Speaker outputs via screw terminals
  • 2 line outputs
  • Input level control and output level control
  • 2-way tone control for the output
  • LEDs for indicating operation, clipping, protect and signal level

Antal
Klar til afsendelse fra fjernlager

Peak output power -
Power rating 30 W
Power rating at 2 _ -
Power rating at 4 _ -
Power rating at 8 _ -
Power rating at 16 _ -
Power rating at 100 V -
Power rating with 4 _ bridged operation -
Power rating with 8 _ bridged operation -
Output impedance -
Channels 1
Zones 1
Inputs 4.5 mV/600 _ (mic 1-3),

120 mV (line 2-3),

60 mV (line 4-5)

90 mV (tel.)
Attenuation factor -
Frequency range 60-15,000 Hz
Crossover network -
Crossover frequency -
Integrated limiter -
Equalizer bass yes
Equalizer midrange -
Equalizer treble yes
S/N ratio 72 dB (mic)

85 dB (line)
Crosstalk attenuation -
THD < 0.5%
Phantom power 48 V
Mains voltage _ 230 V
Mains frequency 50 Hz
Power consumption, operation 100 VA
Power consumption, standby -
Standby current -
Operating voltage (possible alternative) DC 24 V
Power supply (possible alternative) 2.5 A
Admiss. ambient temp. 0-40 °C
Width 320 mm
Height 95 mm
Depth 245 mm
Rack spaces, RS -
Weight 3.95 kg
Connections 1 x XLR (mic 1),

2 x 6.3 mm jack (mic 2-3/line 1-2),

2 x RCA L/R (line 3-4),

2 x RCA (master out),

1 x IEC (FM),

screw terminals (emergency, MOH, DC 24 V, speakers)
