LD Systems Compact Touring Array System

14.909,00 kr.
Inkl. moms

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.

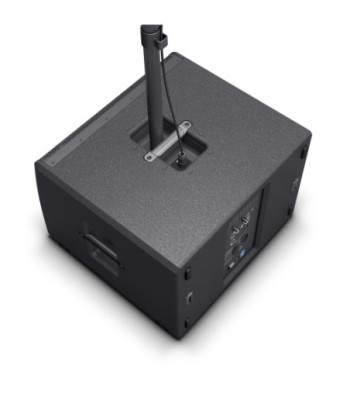

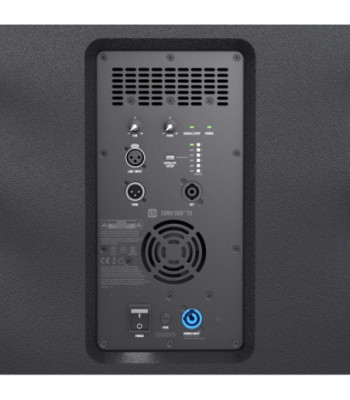

The ported 15" subwoofer base includes the CURV 500® Touring Array System's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.

Antal
Klar til afsendelse fra fjernlager


  • Portable touring array system for live events, DJs and bands
  • 25 premium transducers and WaveAhead® technology for breath-taking high-definition sound
  • 1,000 watts RMS system power and 131 dB max. SPL
  • Fully scalable for far and near field applications
  • SmartLink® plug & play adapter for versatile application
  • Durable aluminum unibody satellite construction
  • 18 mm birch ply subwoofer cabinet with Polyurea finish
  • Ergonomic handles for convenient transport and setup

Product typePA Complete Systems
System output (RMS)1000 W
ColorBlack
Number of array satellites4
Number of Smartlink adapters1
Number of subwoofers1
Max. SPL (continuous)125 dB
Max. SPL (Peak)131 dB
Frequency response40 - 20000
Dispersion (H x V)110° horizontal, vertical 34 °
RMSSubwoofer: 700 W , Array Satellites: 300 W
Peak powerSubwoofer: 1400 W , Array Satellites: 600 W
AmplifierClass D
Protection circuitsDSP-based multiband limiter
Protection circuitsoverload
Protection circuitsShort circuit
Protection circuitsthermal overload
Weight48,2 kg
Accessories (included)Distance bar
Accessories (included)Power cord
Accessories (included)Speaker cable CURV 500 CABLE 1 (2.2 m)

Subwoofer

Low/mid driver dimensions15 "
Low/mid driver dimensions (mm)381 mm
Cabinet constructionBass Reflex
Housing materialplywood
Cabinet surfacePolyurea
Dimensions Subwoofer (W x H x D)600 x 437 x587 mm
Subwoofer weight35.5 kg
Subwoofer features4 ergonomic handels
Subwoofer features6 System DSP Presets
Subwoofer featuresPowercon
Subwoofer featuresspeakON output
Subwoofer featuresThreaded flange M20
Product typeInstallation Loudspeakers
TypeArray Satellites
TypeWall-mounted Loudspeaker
Midrange dimensions2 x 4 "
Tweeter dimensions6 x 1 "
Load rating (RMS)80 W
Peak power160 W
Dispersion110° horizontal, vertical 7 °
Impedance8 Ohm(s)
SPL (1W/1m)91 dB
Max. SPL110 dB
MaterialDie-cast aluminium
SurfacePowder coated
ColorBlack
Width122 mm
Height240 mm
Depth126 mm
Weight3,3 kg
Product typePA Complete Systems Accessories
TypeArray Satellites
Midrange dimensions1 x 4 "
Tweeter dimensions3 x 1 "
Load rating (RMS)40 W
Peak power80 W
Speakers per amplifier channel (DSP44/45K)8x1, 4x2, 2x3, 2x4, 5, 6 (LOW Z)
Dispersion110° horizontal, vertical (each satellite) 10 °
Impedance16 Ohm(s)
SPL (1W/1m)88 dB
Max. SPL104 dB
MaterialDie-cast aluminium
SurfacePowder coated
ColorBlack
Width122 mm
Height122 mm
Depth122 mm
Weight (pair)3.44 kg
Featuresinternal crossover
FeaturesM3 thread for safety rope for installations
Featuresmetal grille
FeaturesSmartLink® System
FeaturesWaveAhead® Technology
Product typePA Complete Systems Accessories
TypeSmartlink® Adapter
MaterialDie-cast aluminium
SurfacePowder coated
Connectors1x Phoenix
Connectors1x Speakon compatible
ColorBlack
Width122 mm
Height57 mm
Depth57 mm
Weight0,35 kg
Features2 x 16 mm flanges
Features2x M6 thread for optional wall mount
LD Systems
LDCURV500TS
