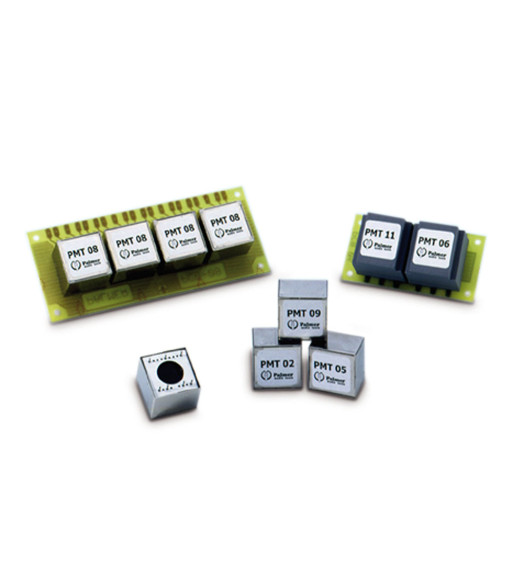

Palmer Split Transformer 1-3 for Microphone Levels
search
  • Palmer Split Transformer 1-3 for Microphone Levels

Palmer Split Transformer 1-3 for Microphone Levels

639,00 kr.
Inkl. moms

Microphone split transformer with 3 secondary windings. Electrostatic and mu-metal shielding, PCB mount. PCB for 4 x PMT-05 available (#PCB-05). Technical specifications: Ratio 1 : 1 + 1 + 1 Nominal impedance input and outputs: 200 ohms Frequency range: 40 Hz - 20 kHz, +/- 0,5 dB Level: + 4 dB max. Dimensions: (without pins): 30 x 30 x 20 mm

Antal
Klar til afsendelse fra fjernlager

Product typeAudio Transformers
Ratio1:1 + 1:1
Source impedance200 Ohm(s)
Load impedance> 200 Ohm(s)
Max. level+ 4 dB
Frequency response40 - 20000
PCBPCB05
DimensionsEE25 mm
applicationmic split
Weight0,08 kg
Palmer
PMT05
