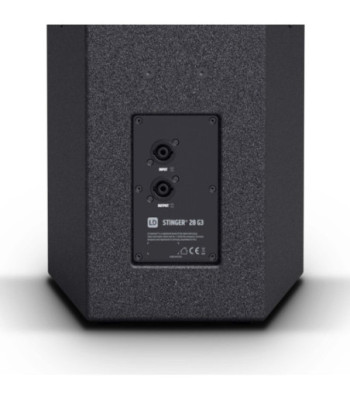

LD Systems Passive 2 x 8" 2-way bass-reflex PA Loudspeaker

3.999,00 kr.

Inkl. moms

STINGER 28 G3

Engineered for rock-solid reliability day in, day out this passive 2-way loudspeaker is a truly professional performer. With its multi-purpose bass reflex construction it is equally suitable for fullrange, satellite or monitor use in live PA systems and permanent installations. The STINGER® 28 G3 boasts a mighty 400 watts RMS power handling and 125 dB maximum sound pressure. It is loaded with dual custom designed 8_ woofers and a BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. Situated directly in front of the two 8_ woofers, phase plugs ensure that midrange efficiency is increased and harmonic distortion above the crossover frequency is reduced.

The STINGER® 28 G3 is designed to be a real workhorse throughout. The enclosure is made of rigid birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the STINGER® 28 G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.

Antal

Klar til afsendelse fra fjernlager

LOG IND! Forspørg om prismatch, TILBUD på en eller flere varer

Forbindelse

Beskrivelse
Produktoplysninger

2-way passive 2 x 8_ bass reflex PA speaker
400 watts RMS power handling
125 dB maximum SPL
2 x 8_ custom woofer and BMS compression driver
BEM optimized HF waveguide for uniform coverage
Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points
Shock-resistant front grill provides maximum speaker protection
36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
Large selection of smart installation and transport accessories

Product type	PA loudspeaker
Type	Passive
Low/mid Woofer dimensions	2 x 8 "
Woofer dimensions (mm)	2 x 203.2 mm
Woofer magnet	Ferrite
Woofer brand	Custom-made
Woofer voice coil	2 "
Woofer voice coil (mm)	50.8 mm
Horn	BEM optimized CD Horn
HF driver dimensions	1 "
HF driver dimention (mm)	25.4 mm
HF driver magnet	Ferrite
HF driver brand	BMS
HF driver voice coil	1 "
HF driver voice coil	25.4 mm
Dispersion (H x V)	90 x 50 °
Load rating (RMS)	400 W
Peak power	800 W
Frequency response	58 - 20000
SPL (1W/1m)	99 dB
Max. SPL	125 dB
Impedance	8 Ohm(s)
Protection circuits	HF Driver
Loudspeaker inputs	1
Speaker input connections	Speakon compatible
Loudspeaker outputs	1
Speaker output connections	Speakon compatible
Speakers per amplifier channel (DSP44/45K)	3
Cabinet material	12 mm Plywood
Cabinet surface	Polyurea
Cabinet construction	Bass Reflex
Width	270 mm
Height	756 mm
Depth	290 mm
Weight	19,3 kg
