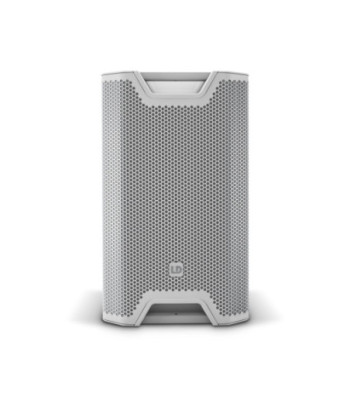

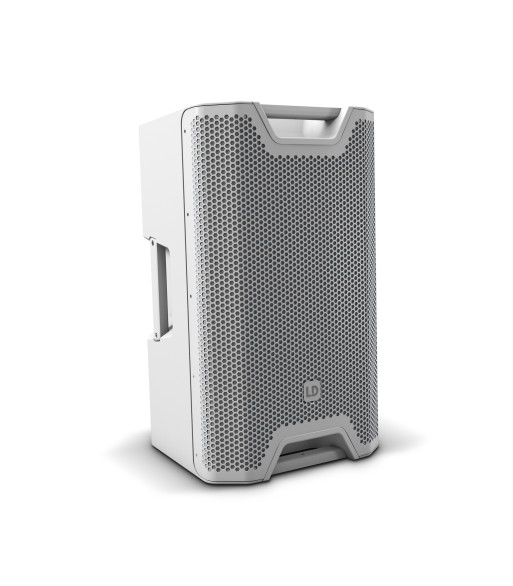

LD Systems 12" Passive Coaxial PA Loudspeaker, White

3.069,00 kr.
Inkl. moms
ICOA 12 W

This 12" full-range loudspeaker stands out with impressive sound even at low frequencies. As a jack-of-all-trades, the unpowered ICOA 12 speaker by LD Systems and its design with a coaxial design and rotating, BEM-optimised CD horn means it is extremely flexible.

The horn-loaded woofer's outstanding bass reproduction makes the ICOA 12 the ideal choice for dance schools, musicians, bands and entertainers. It also allows DJs to play sets without the need for a subwoofer. The speaker also makes a good impression in fixed installations due to its freedom of flexibility. The white version with a white grille blends in subtly into any environment and doesn't distract.

Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. It Delivers a maximum sound pressure level of 123 dB peak and has 1000 Watt peak performance.

Thanks to its shock-resistant front grille and ideal 55° tilt angle make the ICOA 12 outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment. Extensive and smart accessories for installation and transport are optionally available. Four aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Antal
Klar til afsendelse fra fjernlager

  • A genuine all-rounder for full-range, satellite and monitor applications as well as fixed installations
  • Passive loudspeaker with 123 dB max. SPL and 1000 W peak power
  • Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent pending)
  • Horn-loaded woofer
  • 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand
  • 6 x M10 flying points
  • Shock-resistant front grille for optimal speaker protection
  • Four aluminium grips with ergonomic, rubber surface
  • Extensive range of optionally available accessories for installation and transport

Product typePA loudspeaker
TypePassive
ColorWhite (RAL 9003)
Low/mid Woofer dimensions12 "
Woofer dimensions (mm)304.8 mm
Woofer magnetFerrite
Woofer brandCustom-made
HornBEM optimized CD Horn
HF driver dimensions1 "
HF driver dimention (mm)25.4 mm
HF driver magnetFerrite
HF driver brandCustom-made
HF driver voice coil1.4 "
HF driver voice coil35 mm
Dispersion (H x V)90° x 50°
Load rating (RMS)250 W
Peak power1000 W
Frequency response55 Hz - 20000 Hz
Crossover frequency2000 Hz
SPL (1W/1m)93 dB
Max. SPL123 dB
Impedance8 Ohm(s)
Loudspeaker inputs1

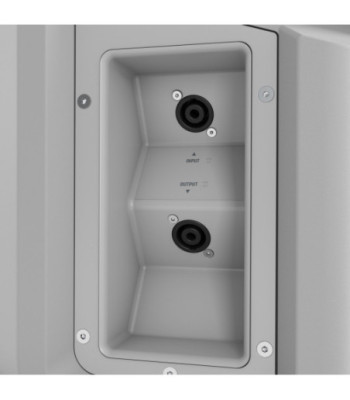

Speaker input connectionsSpeakon compatible
Loudspeaker outputs1
Speaker output connectionsSpeakon compatible
Cabinet materialPolypropylene
Cabinet constructionBass Reflex
Mounting36mm flange (0°, 5°)
Mounting6 x M10 flying points
Monitor angle55 °
Width375 mm
Height635 mm
Depth396 mm
Weight19,8 kg
LD Systems
LDICOA12W
