LD Systems 12" Powered Coaxial High-Performance PA Loudspeaker with Bluetooth and App

9.789,00 kr.
Inkl. moms

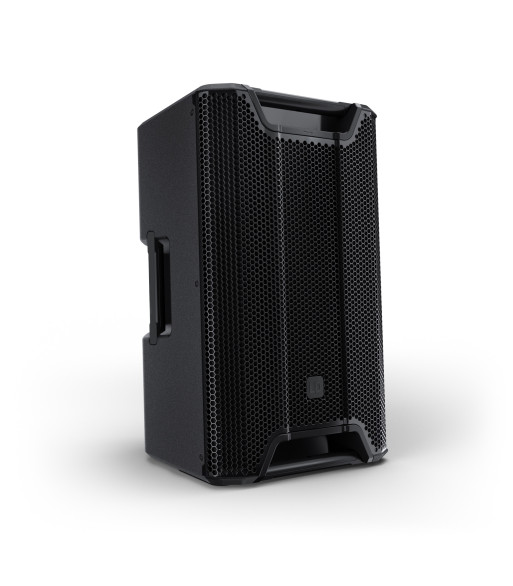

The ICOA PRO 12 A combines the sonic precision of a true coaxial system with the flexibility of a compact 12ʺ loudspeaker. Its professional full-range performance and robust design make it exceptionally versatile and ideal for a wide range of applications, from club gigs to live events and permanent installations.

The coaxial design combines a specially manufactured 12ʺ woofer with a 3ʺ voice coil and 3ʺ titanium tweeter to create an authentic point source. The common motor design used also ensures the audio signal's improved coherence and time accuracy. The result is a particularly natural and detailed playback.

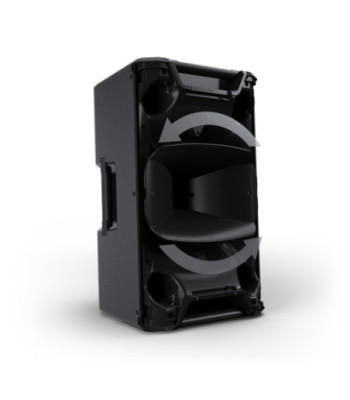

The rotatable, BEM-optimised horn ensures precise dispersion characteristics and simultaneously provides horn loading for the woofer and tweeter. This double horn loading allows the sound waves to be precisely focused deep into the mid-range (approx. 600 Hz) and offers a decisive advantage in acoustically demanding environments, as the sound energy arrives exactly where it is needed.

Thanks to its flow-optimised bass reflex ports, the ICOA PRO 12 A delivers a solid low end up to 53 Hz and thus an impressive full-range experience. The powerful Class D amplifier delivers up to 1000 W RMS (2000 W peak) and 133 dB max. SPL, ensuring sufficient headroom when powerful, distortion-free sound is required.

The modern SysCore DSP with FIR/IIR filters and advanced limiters guarantees distortion-free sound and safe operation with maximum clarity and punch – even at the limits.

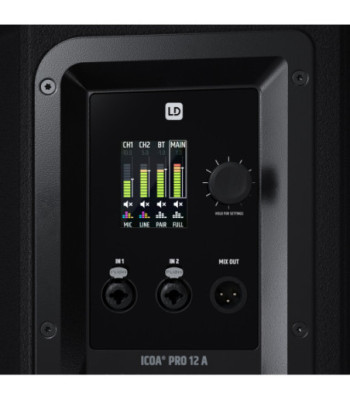

 Two line/mic input channels and an XLR mix tap enable various signal sources to be connected and forwarded.

Four application presets (including a low-latency monitor), delay function, and parametric 4-band EQs for the input and master channels enable precise settings.

The whole experience is rounded off by an intuitive menu navigated using the colour display with one-knob control and the free ICOA PRO app.

All settings can be adjusted quickly and wirelessly via the app, and multiple speakers can be paired with each other. A stereo setup with up to two tops and four subs, including direct music streaming via Bluetooth 5.1 and TWS, can be created and ready for use in the app in just a few seconds. A status LED on the front of the subwoofer enables easy identification and indicates if the limiter is activated.

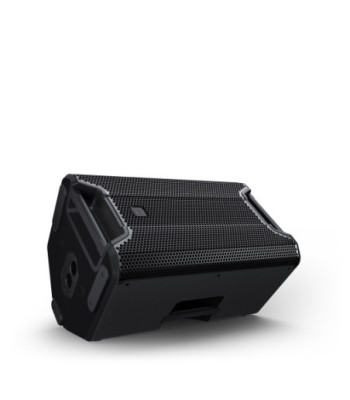

Its robust ABS cabinet with steel reinforcement, sturdy front grille and 50° tilt angle make the ICOA PRO 12 A an excellent floor monitor. Four ergonomic carrying handles also ensure a secure grip while setting up and dismantling.

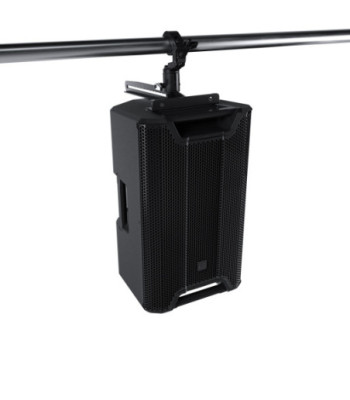

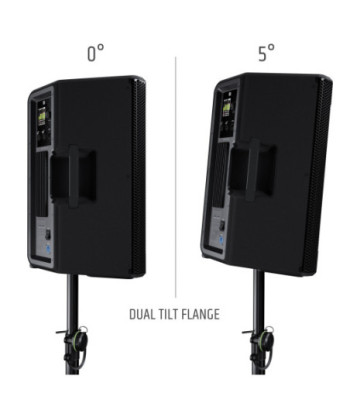

When used with a tripod, a tilt angle of 0° or 5° can be selected. Whether vertical or horizontal, the rotatable horn and the multiple mounting options, such as 6 × M10 flying points and the EasyMount truss mount, mean the loudspeaker can be used flexibly in a wide variety of environments.

This makes the ICOA PRO 12 A the perfect choice as a versatile tool for all event and installation applications.

Padded, water-repellent custom-fit protective covers with additional storage space are available as accessories for safe use and transport.


Antal
Klar til afsendelse fra fjernlager

  • High-power loudspeaker with premium components for full-range, satellite, monitor, and integrated applications
  • 133 dB max. SPL and 1000 W RMS / 2000 W peak
  • Coaxial design with common motor for a true point source
  • 12" woofer with 3" voice coil and 3" titanium HF driver
  • Large, rotatable, BEM-optimised CD horn with 800 Hz crossover for homogeneous 90° x 50° dispersion
  • Flow-optimised bass reflex ports for outstanding full-range performance
  • SysCore® DSP with FIR/IIR filters and crossover for distortion-free sound, even at maximum volume
  • 2 x line/mic inputs with individual gain control, plus 1x mono mix output
  • Bluetooth® 5.1 and stereo streaming (TWS) with two ICOA PRO 12 A
  • Free app for remote adjustments via smartphone and tablet (iOS and Android)
  • 4-band parametric EQ, 4 application presets (incl. low-latency monitor) and delay function
  • EasyMount® compatible for tool-free mounting, as well as 6 x M10 rigging points
  • 35 mm dual-tilt stand attachment with 0° and 5° tilt angles
  • Ultra-robust ABS housing with integrated steel construction and a shock-resistant grille
  • Front LED indicator (identification, power and limiter)
  • Extensive, optionally available accessories for outdoor use, installation and transport

General

TypeActive
Peak output power2,000 W
RMS output power1,000 W
Amp classClass D
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)127 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4)133 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)118 dB
Frequency response (-10 dB, rel. Avg)50 - 20,000 Hz
Speaker system2-way coaxial system (Common Motor Design)
Crossover frequency800 Hz
Beam angle90° (hor.) / 50° (vert.)
Monitor angle50 °
Protection featuresMultiband Limiter, Short circuit, Overheating, Direct current
ColourBlack

Bluetooth®

Bluetooth® versionBluetooth® 5.1
FeaturesAudio Streaming (A2DP), TrueWireless™ Stereo, TrueWireless™ Mirroring, App control
Supported audio codecsSBC, AAC

Inputs

Number of mic/line inputs2
Mic/Line-in connector typeXLR combo socket

Outputs

Number of line outputs1
Line outputs connector typeXLR combo socket

Signal processing

AD/DA converter bit depth24 Bit
AD/DA converter sampling rate48 kHz
Min. Signal-to-noise ratio (SNR)108 dB

Bass driver

Size12 "
Outer diameter312.3 mm
MagnetFerrite
Voice coil3 "

Tweeter

Driver size3 "
Outlet diameter36.68 mm
MagnetFerrite
Voice coil3 "

Mains operation

Operation voltage100 V AC - 240 V AC / 50 - 60 Hz
Rated power650 W
Power supply typeSwitched-mode power supply (SMPS)
Mains fuseT6.3AH/250 V

Housing

DesignBass reflex
Number of handles4
Number of mounting points6
Flange35 mm (0°/5°)
Chassis materialABS

Cooling

Cooling systemConvection cooling

Environmental

Ambient temperature0 - 40 °C
Maximum air humidity (non-condensing)80 %

Dimensions & weight

Width376 mm
Height627.8 mm
Depth393.6 mm
Weight23.1 kg
