NEUTRIK Line-trafo - NTE-1

159,00 kr.
Inkl. moms

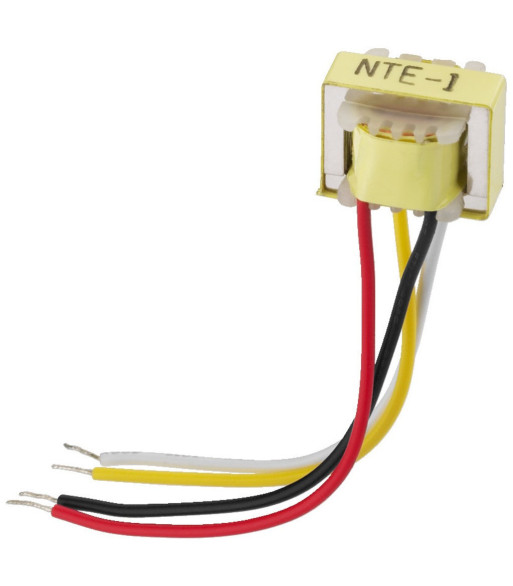

Audio transformer 1:1 for microphone signals, from NEUTRIK.
  • Very compact design, e.g. also suitable for installation into connector housings
  • Unshielded version with bare wire connections (70 mm)
  • Wideband version
  • Balance adjustment
  • Galvanic isolation to avoid/eliminate hum loops
  • Max. input voltage: 550 mV (1% THD/50 Hz)
When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.
Antal
Klar til afsendelse fra fjernlager

Type transformer
Frequency range 20-20,000 Hz
Control range -
Control frequencies -
Input signal 50 mV
Input sensitivity -

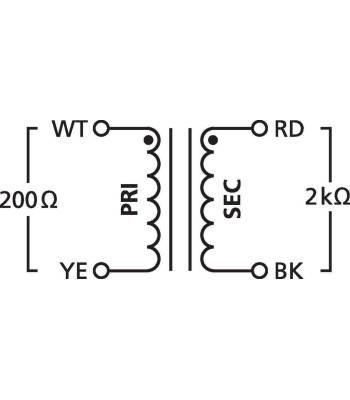

Input impedance 200 _
Output signal -
Output impedance 2 k_
Gain -
Phantom power
Compression -
Gate ratio -
Crossover frequency -
High-pass filter -
Low cut -
Transmission ratio 1:1
S/N ratio -
Channel separation -
THD -
Admiss. ambient temp. -
Power supply -
Dimensions 14 x 11 x 12 mm
(w/o cable)
Weight 4g
Inputs bare cable ends
Outputs bare cable ends
Other features -
NEUTRIK
NTE-1
