MONACOR 100V trafo 5-vejs - PATL-105

669,00 kr.
Inkl. moms

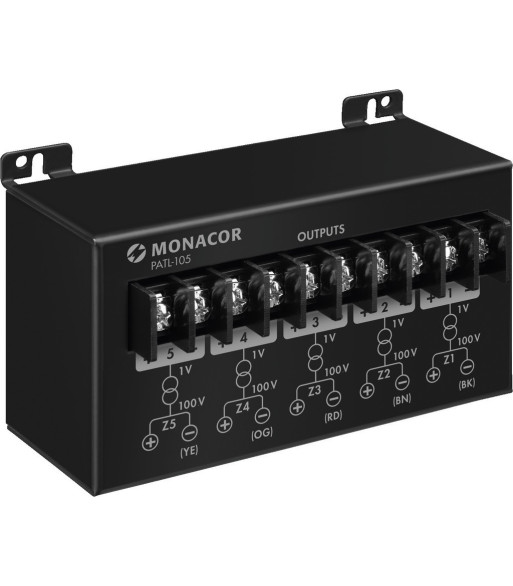

5-way 100 V transformer,
for connecting a 100 V audio signal source to devices with line inputs.
  • Suitable for PA mixing amplifiers PA-1120, PA-1240, PA-6240, PA-6480, PA-6000
  • Transforming 100 V output signals into line signals to 5 lines (galvanically isolated)
  • To be mounted directly to the rear panel of a respective amplifier
  • Frequency range: 15-30,000 Hz
  • Dimensions: 120 x 75 x 60 mm
  • Weight: 405 g

Antal
Klar til afhentning // afsendelse fra eget lager

Description100 V transformer
Frequency range15-30,000 Hz
Control range-
Control frequencies-
Input signal-
Input sensitivity-
Input impedance20 k_
Output signal-
Output impedance200 _
Gain-
Phantom power-
Compression-
Gate ratio-
Crossover frequency-
High-pass filter-
Low cut-
Transmission ratio-
S/N ratio-
Channel separation-
THD-
Admiss. ambient temp.0-40 °C
Power supply-
Dimensions120 x 75 x 60 mm
Weight405 g
Inputscable lugs
Outputsscrew terminals
Other features-
PATL-105
