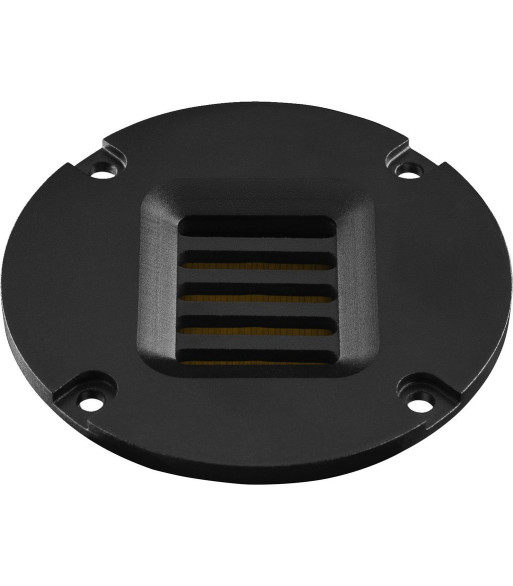

MONACOR Bånddiskant - AIRMT-85

1.269,00 kr.
Inkl. moms
Air Motion Transformers
are a special type of tweeter systems which have been developed by the German physicist Oskar Heil during his research on the characteristics of the human ear. The main feature is a film-covered cone with a special folding which vibrates like an accordion when an audio signal is applied. This folding allows to accommodate a large cone area at a minimum of space. The AMTs feature a dynamic sound, an excellent transient response, a high efficiency and a low harmonic distortion.
High-end Air Motion Transformer tweeter, 20 W, 4 _
  • Tweeter based on the principle of Air Motion Transformer
  • High-performance neodymium magnet system
  • Fine, dynamic and brilliant reproduction of the high frequencies
  • Folded cone made of Kapton and aluminium
  • High efficiency
  • For use from 2,500 Hz on
  • Robust aluminium front panel
Klang+Ton 08,09/2016
"Compact AMT with quite a low crossover frequency possible for two-way speaker systems and multi-way speaker systems of highest quality."
Antal
Klar til afsendelse fra fjernlager

Impedance (Z)4 _
Line technique-
Frequency range2,000-30,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)> 2,500 Hz
Power rating20 W
Peak music power output40 W
Sensitivity92 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)3.8 _
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameterneodymium rods
Mounting cutoutØ 66 mm
Mounting depth36 mm
Mounting hole diameterØ 75 mm
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 85 mm x 36 mm
Outside diameterØ 85 mm
WidthØ 85 mm
Height-
Depth36 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight0.3 kg
Sales unit1
Type of speaker-
AIRMT-85
